Force Motors · Passenger Van
Force Urbania
Explore convenience, every journey smooth
Urbania by Force Motors brings world-class shared mobility. Aerodynamic design, reclining seats and latest-generation safety in short, medium and long wheelbase.
FEATURES

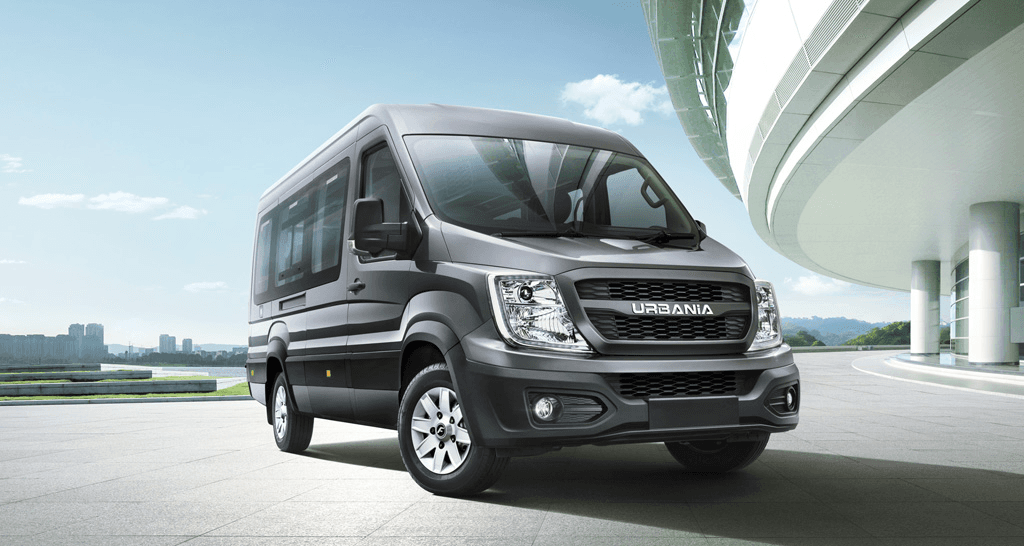

Explore Style
A style that instills a desire in passengers to travel world-class in an upmarket shared mobility solution.
01 / 04
TECHNICAL SPECIFICATION
| Engine | |
|---|---|
| Type | Euro 6, DI Turbo-Charged Internal Combustion |
| Model | FM2.6CR ED |
| Max. Torque | 350 NM @ 1400–2200 rpm |
| Displacement | 2596 cc |
| Bore × Stroke | 90.9 × 100 mm |
| Max. Output | 114 Hp (85 kW) @ 2950 rpm |
| Clutch | |
|---|---|
| Type | Dry friction, single plate, hydraulically actuated |
| Gear Box | |
|---|---|
| Type | Manual, synchromesh on forward gears |
| Gears | 5 Forward + 1 Reverse |
| Steering | |
|---|---|
| Type | Power steering |
| Suspension | |
|---|---|
| Rear Spring | Parabolic leaf spring |
| Front Spring | Parabolic leaf (RFS) / transverse leaf (IFS) |
| Anti Roll Bar | Front yes, rear optional |
| Brakes | |
|---|---|
| Front & Rear | Disc |
| Parking Brake | Mechanical, acting on transmission |
| Service Brake | Hydraulic, vacuum assisted |
| Auto Slack Adjuster | Yes |
| Wheels | |
|---|---|
| Tyre Size | 235 / 65 R16 C, radial tubeless |
| Fuel Tank | |
|---|---|
| Capacity | 70 L |
| Dimensions (mm) | |
|---|---|
| Length | 5440 / 6225 / 7010 |
| Width | 2095 |
| Height | 2550 |
| Wheel Base | 4400 |
| Ground Clearance | 200 |
| Seating | |
|---|---|
| Options | 10 / 13 / 17 seater |
| Seats | Wide reclining seats |
| Airbags | Driver + co-driver |
Force Urbania brochure
Full specifications brochure available on request.
