Force Motors · Passenger Van

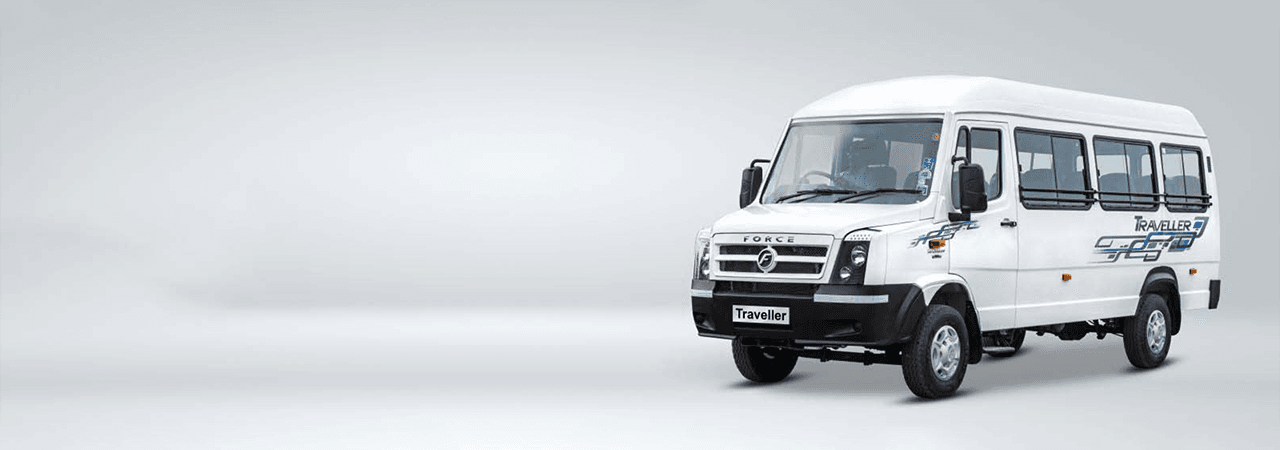

Force Traveller Bus
Mercedes-derived power, monocoque comfort
Traveller Bus: staff and tourist coach on Force's proven Traveller platform with the Mercedes-derived FM 2.6 CR powertrain.
FEATURES
Proven Powertrain
Mercedes-derived, highly refined FM 2.6 CR power train built for lakh after lakh of dependable kilometres.
01 / 04
TECHNICAL SPECIFICATION
| Engine | |
|---|---|
| Type | 5 Cylinder Common Rail |
| Max. Torque | 320 NM @ 1400–2400 rpm |
| Displacement | 3245 cc |
| Max. Output | 114 hp (85 kW) @ 2800 rpm |
| Transmission | |
|---|---|
| Type | Manual, synchromesh |
| Gears | 5 Forward + 1 Reverse |
| Axles | |
|---|---|
| Rear | Live rigid |
| Front | Dead rigid |
| Steering | |
|---|---|
| Type | Power steering |
| Body | |
|---|---|
| Type | Monocoque construction |
| Suspension | |
|---|---|
| Front & Rear | Spring semi-elliptical |
| Anti Roll Bar | Front yes, rear yes |
| Shock Absorbers | Hydraulic telescopic, double acting front & rear |
| Wheels & Tyres | |
|---|---|
| Size | 215 / 75 R15 |
| Brakes | |
|---|---|
| Type | Dual circuit, hydraulic, vacuum assisted, ABS with EBD |
| Front & Rear | Disc |
| Parking Brake | Mechanical acting on rear wheel / transmission |
| Auto Slack Adjuster | Yes |
| Fuel Tank | |
|---|---|
| Capacity | 70 L |
| Dimensions (mm) | |
|---|---|
| Wheel Base | 4020 |
| Overhang Rear | 1850 |
| Overall Width | 2225 |
| Overall Height | 2670 (2870 with AC) |
| Overall Length | 6770 |
| Overhang Front | 900 |
| Ground Clearance | 190 |
| Weight (kg) | |
|---|---|
| Maximum FAW | 2080 |
| Maximum GVW | 5750 |
| Maximum RAW | 3670 |
Force Traveller Bus brochure
Full specifications brochure available on request.
