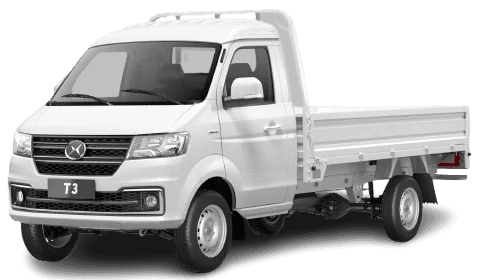

Shineray T30 Single Cabin
920 kg mini-truck workhorse
Shineray T30 Single Cabin mini truck — 1.6L engine with 80 kW, 920 kg rated payload and tight-street agility for everyday business needs.
FEATURES
Mini-Truck Power
1.6L engine delivering 80 kW of smooth, quiet and fuel-efficient performance for city and highway.
01 / 04
TECHNICAL SPECIFICATION
| Overview | |
|---|---|
| Version | T30 Single Cabin |
| Seats | 2 |
| Category | Truck (N1) |
| Drive | LHD |
| Dimensions (mm) | |
|---|---|
| Overall | 4930 × 1720 × 1975 |
| Cargo Bed | 2920 × 1635 × 370 |
| Curb Weight | 1170 kg |
| Rated Payload | 920 kg |
| Gross Weight | 2220 kg |
| Tyre | 175/70R14C |
| Engine | |
|---|---|
| Model | DLCG14 |
| Emission | China V |
| Displacement | 1.597L |
| Power | 80 kW |
| Chassis | |
|---|---|
| Steering | Mechanical power steering / EPS |
| Brakes | Front disc, rear drum |
| Suspension | Front McPherson independent / rear leaf spring |
| Safety | ABS + front dual airbags |
Shineray T30 Single Cabin brochure
Full specifications brochure available on request.
